Description

Q-Bert Stylus Single

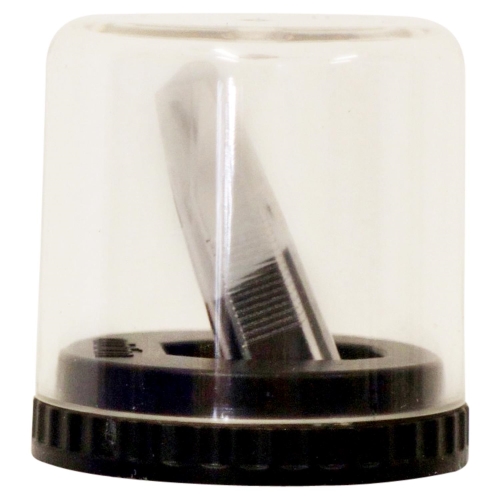

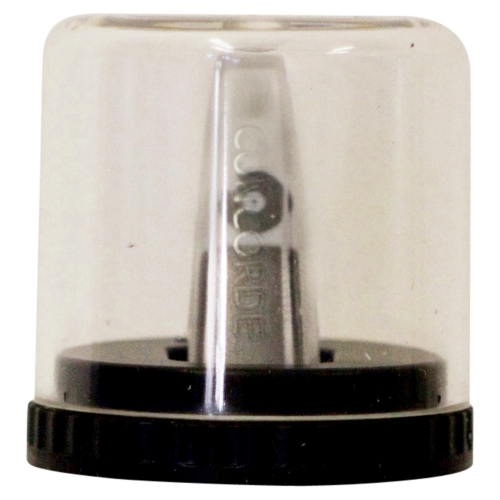

The Ortofon QBert Stylus gives you a replacement stylus to suit your Ortofon Concorde Q-Bert Cartridge.

With a supreme ability to trace the grooves of your records, the QBert Stylus is tailored specifically for scratching. Especially music with deep bass frequencies.

The new stylus features

  • Output voltage at 1000 Hz, 5cm/sec.: 11 mV
  • Channel balance at 1 kHz: 1.5 dB
  • Channel separation at 1 kHz: 22 dB
  • Channel separation at 15 kHz: –
  • Frequency range @ -3dB: 20-18.000 Hz
  • Frequency response: 20-18.000 Hz, -3 dB
  • FIM distortion at recommended tracking force, DIN 45.542: < 1%
  • Tracking ability at 315Hz at recommended tracking force: 90 µm
  • Compliance, dynamic, lateral: 12 µm/mN
  • Stylus type: Spherical
  • Stylus tip radius: R 18 µm
  • Equivalent stylus tip mass: 0,6 mg
  • Tracking force range: 2,0-4,0 g (20-40 mN)
  • Tracking force, recommended: 3,0 g (30 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 1680 Ohm
  • Internal inductance: 920 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 200-600 pF
  • Cartridge colour, body/stylus: Black/White
  • Cartridge weight: 18,5 g
  • Replacement stylus unit: Q.Bert
